LTI-WM-WIFI Wireless Wallmount Interface

The LTI-WM-WIFI wireless wallmount interface can report real time readings from inserted loggers to LogTag^® Online. It does not require configuration using LogTag^® Analyzer, however, the LogTag^® Online Connection Wizard can be started directly from LogTag^® Analyzer from the LogTag Online menu.

If you are already signed in to your LogTag^® Online account with LogTag^® Analyzer, you will not need to provide your account details again. If you have selected a team, a new device will be registered against that team.

Continue with the easy setup as described until the connection to LogTag^® Online is tested.

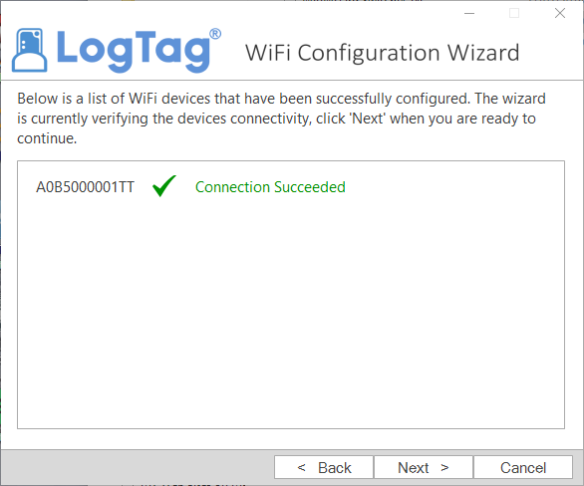

The LTI-WM-WIFI will display Connection Succeeded after a few moments, indicating the connection was successful.

The LTI-WM-WIFI can report a successful connection to LogTag^® Online via the Wizard.

After you have deployed the interface in its final location, you should confirm the device was successfully configured by looking at the network LED at the front of the interface.

If the blue network LED blinks every 4 seconds, your LTI-WM-WIFI has successfully connected to the LogTag^® Online cloud server, and your interface is ready to upload data.

Logger real-time data can be uploaded to locations. This can be set up in LogTag^® Online. For more information please see the online help for the interface and the LogTag^® Online help.
