Easy Wi-Fi Setup

If your network assigns network connection details automatically, you can select Easy Wi-Fi Setup and click Next >. The only details you need to complete are the SSID and Network Security Key.

The Wizard scans for attached interfaces and shows them in a list. Click Next > when all interfaces have been found.

In the next window, you can select the SSID for the wireless network. The list is sorted by signal strength, but please remember that the network you want to connect to may not be the one with the strongest signal. If the network is currently not in range you can type the SSID, rather than selecting it from the list. This is also required if the SSID is not broadcast by the Wireless Access Point ("Hidden Network").

Select the network to connect to

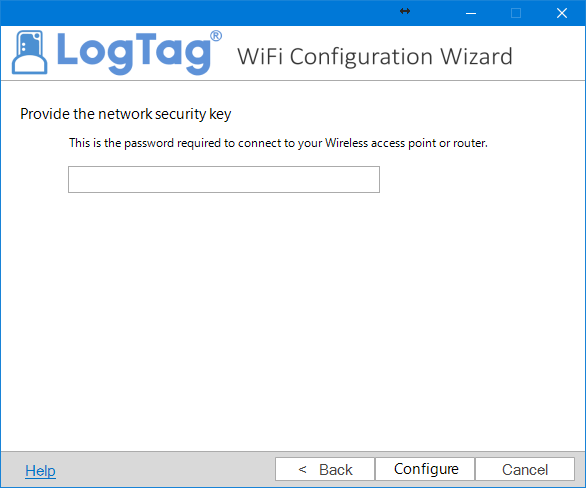

In the next window enter the Network Security Key (password).

Enter the password

Click Configure to transfer the settings to the interface. You will receive a sucess message once all interfaces have been configured.

Settings successfully transferred

To configure more interfaces, plug them into your computer and click Again. Click Close to end the Wizard.

Next Step:

Connecting to LogTag® Online
