LogTag® Connect
To configure or download LogTag®recorder products you need a LogTag® interface cradle and a small Windows application called LogTag® Connect.
Once installed, LogTag® Connect runs in the background and automatically starts every time you log into Windows on your PC. It does not require any special settings and a small icon in the notification area (
) will show you it is running.
To install the program, click Start Shipment or Finish Shipment. You will see this page:

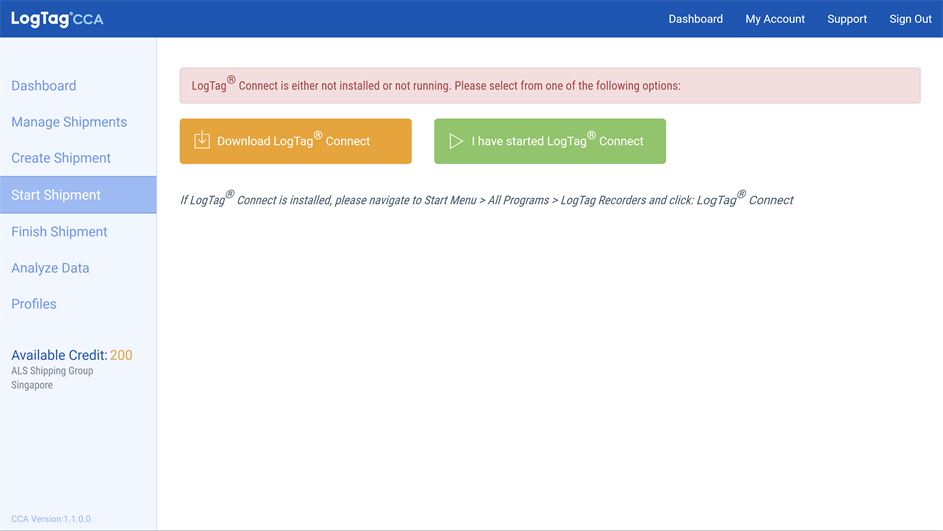

LogTag® Connect not running
Click Download LogTag® Connect . An additional page will be displayed, providing instructions and a download button1The button will only be available when the browser is run on a Windows operating system for which LogTag® Connect is supported.:

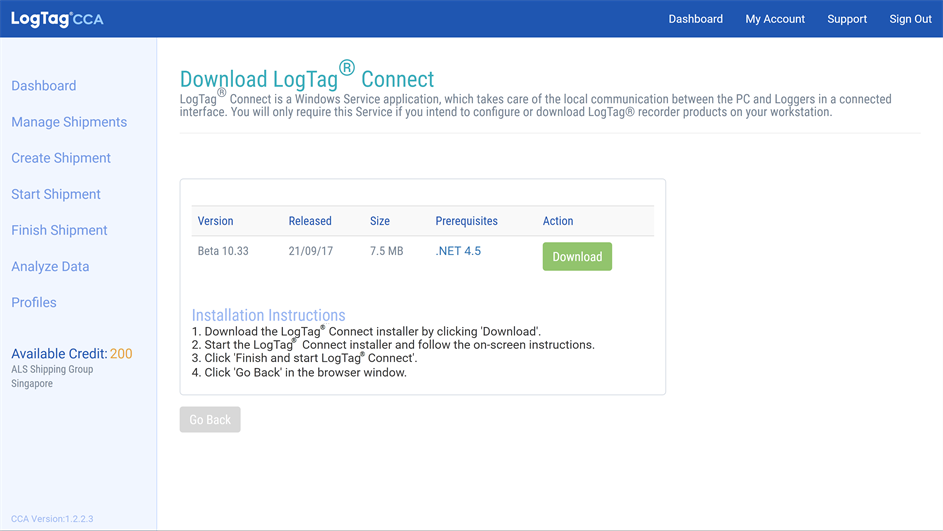

Downloading LogTag® Connect

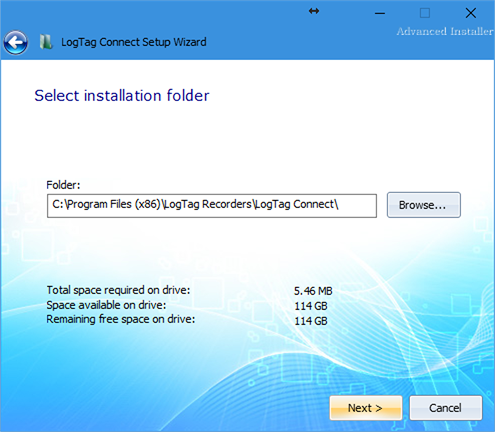

Follow the on-screen instructions. The downloaded file is a self contained installer program named LTConnect10r33.exe, which you need to save to a local folder.

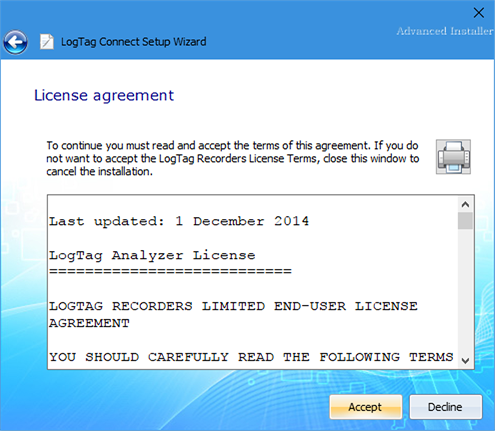

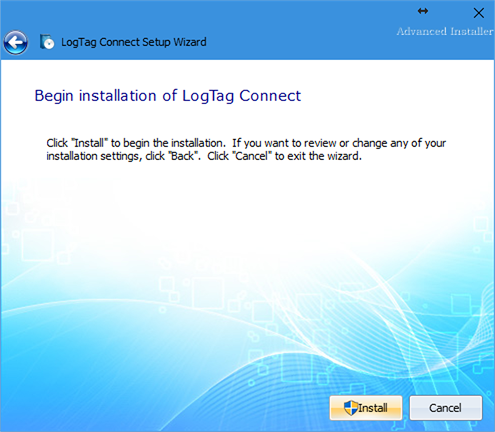

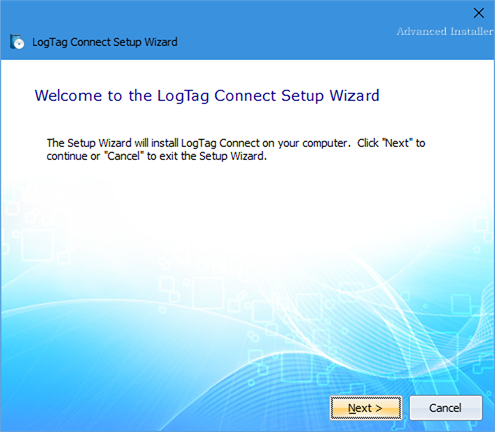

Run the installer program by double clicking the downloaded file. Follow the instructions shown on your screen to install LogTag® Connect.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

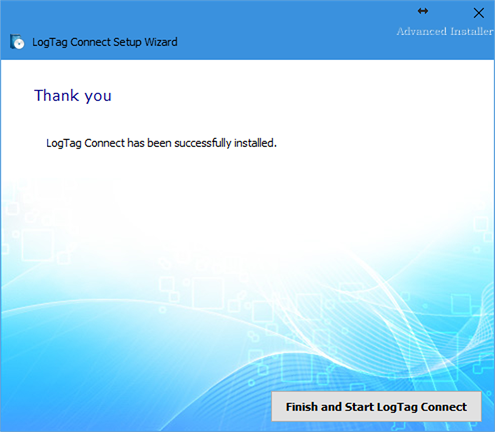

Click Finish and Start LogTag Connect to return to the browser window. Click Go Back and you will see Attach Loggers or Download Loggers page, depending from which page you started the installation process.
Updates

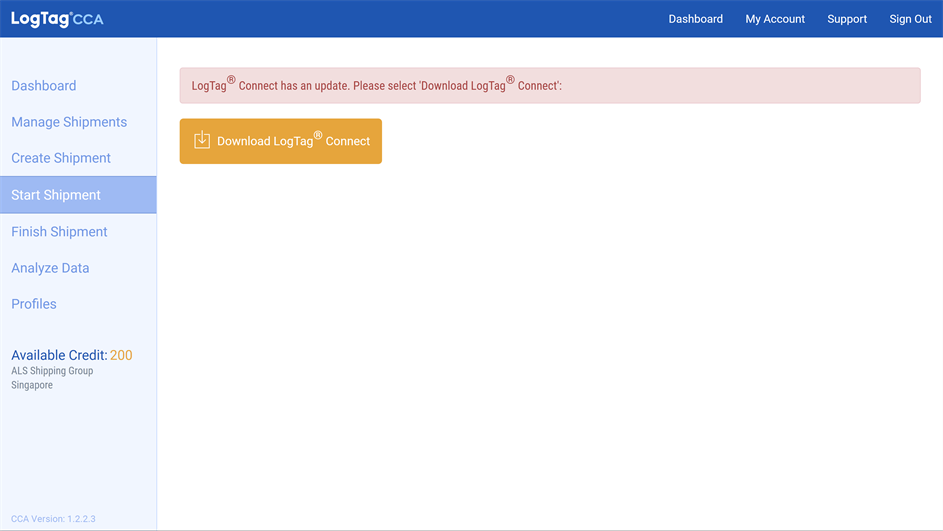

From time to time LogTag® Connect requires an update to support new models and features. When an update is available, you will be asked to download and install this update.
The installation follows the same process as described for new installations.
