Advanced Configuration Options

Select Advanced Options for additional configuration settings. These settings decide how some of the elements are displayed on the screen and set certain options specific to the UTRED30-WiFi.

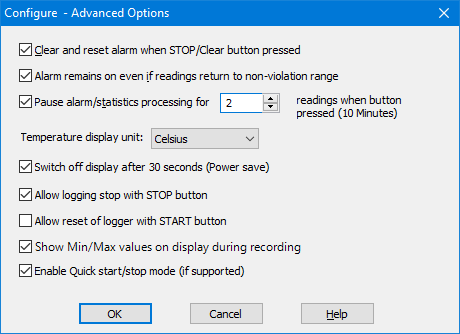

Figure 1: UTRED30-WiFi advanced configuration screen

Parameters that influence the appearance of the display are

• Pause alarm/statistics processing (see Paused Readings)
• Temperature display unit (see Display Overview)
• Switch off display after 30 seconds (Power save, see Power Save)
• Showing the minimum and maximum values on the display during recording

Parameters influencing specific behaviour of the UTRED30-WiFi are

• clear and reset alarm when the START/CLEAR/STOP button is pressed
• leaving the alarm turned on, even if readings return to the normal temperature range again
• allowing the user to stop the logger with the START/CLEAR/STOP button
• allowing the user to reset the logger with the START/CLEAR/STOP button
• enable or disable the quick start/stop mode (please see Push button start and Push button start, quickstart disabled ).

Enter the desired options and click OK to accept the new values. This returns you to the standard configuration dialogue.



Min/Max since last inspection or current day or current trip
