Wifi Configuration Wizard

When you have all network details required for connection, download the Wifi Configuration Wizard, which is a self-contained program that requires no installation. Start it by double-clicking the downloaded file.

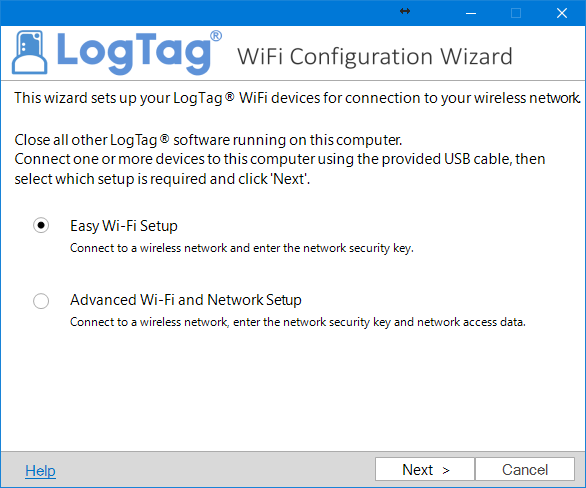

The Wizard starts and allows you to select one of two setup methods.

Each window in the Wizard gives you additional information and explains the steps you need to complete.

Next steps:

Dynamic IP Addresses

Dynamic IP Addresses

If your network allocates IP addresses dynamically via a DHCP server, select Easy Wi-Fi Setup, click Next > and follow the instructions in the Wizard.

Static IP Addresses

Static IP Addresses

If your network works with static IP addresses, select Advanced Wi-Fi and Network Setup, click Next > and follow the instructions in the Wizard. You also need to complete this setup, if you want to set additional parameters such as power levels or passwords.

You can set up multiple interfaces at the same time. When you use the Easy Wi-Fi Setup, all interfaces will receive the same SSID and Network Security Key. Using the Advanced Wi-Fi and Network Setup, you can choose to leave the individual Wireless Network Settings untouched, and only change Network related settings.
